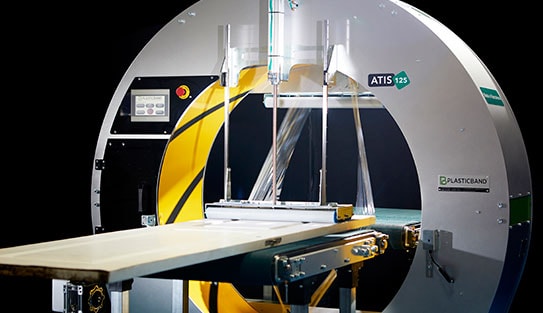

Orbital wrappers Atis 125
Wrapping machine automatic
We manufacture the most technologically advanced, versatile, safe and customizable orbital wrappers.

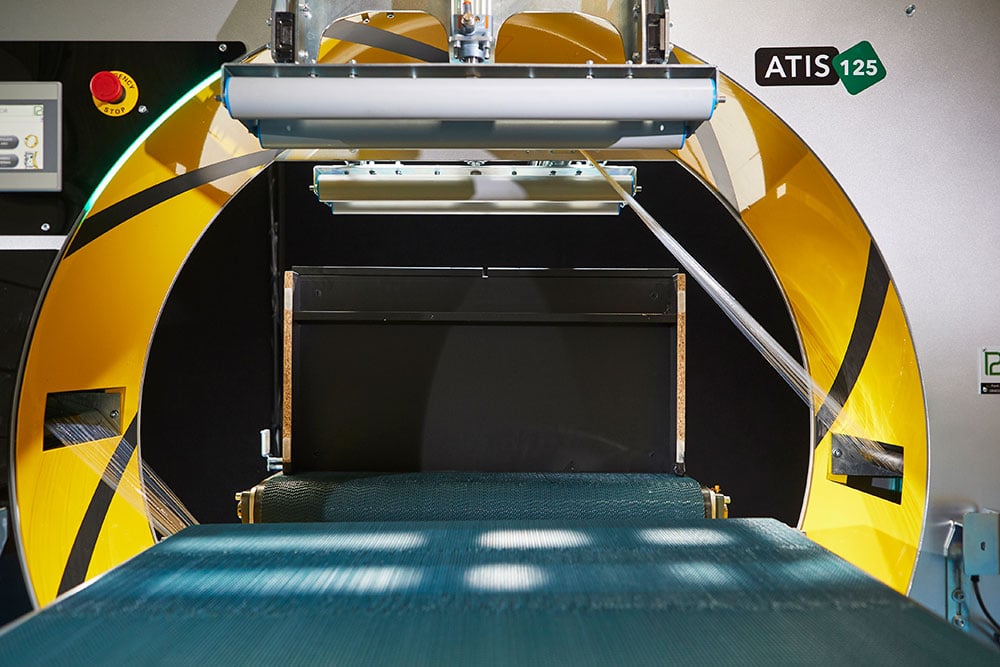

The wrapper orbital automatic ATIS 125 is designed to wrap furniture, doors, modules, cabinets, windows and boxes in high production and automated lines.
Groups, and protect your products from dirt, dust and moisture, keeping them intact during transport and storage.
CUSTOM FABRICATION | SHORT DELIVERY TIME
FEATURES GENERAL
Double-head portabobina film
Tension of the film adjustable
Double cutting system automatic

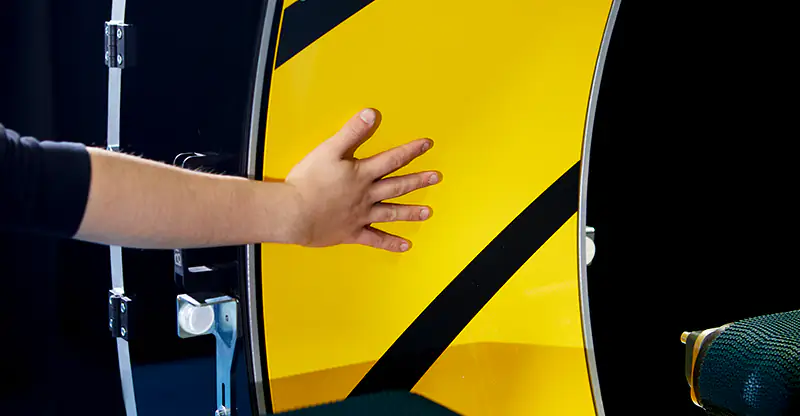

Protective ring
Touch screen adjustment parameters
CUSTOMIZED STRAPPING & WRAPPING
More than 100 accessories combinable and thousands of combinations. Costs of each fixture and the equipment total. Information about when you will receive in your factory equipment that you have designed
- Bridge to short products
- System automatic cutting
- Roller conveyors
- Different programs ( eco. auto, standard,...)
- Colors
- Wheel brake, dispenser manual...
- Extra security ( switch, close, dual-channel...)
- Electrical connection and certification
- Perimeter security
- Original Film
- Side guides
- Services (commissioning, guarantee, maintenance, etc.)
SPECIFICATIONS TECHNIQUES
| DIMENSIONS PRODUCT TO BE WRAPPED | |
|---|---|
| Length-maximum / minimum | No limit / 600 mm (400 mm with wedge / bridge-motorized) |
| Width and height | See chart |
| Minimum dimensions | 300 x 300 x 600 mm (L) |
| ELECTRICAL EQUIPMENT | |
|---|---|
| Installed power | 3 Kw |
| Electrical connection | 400V-III + N |
| Maneuver | 24V c. c. |
| Power consumption | 1,61 Kw |
| Speed twist ring | From 5 to 80 rpm |
| Variable speed drive | Omron |
| Programmable logic controller | Omron |
| Pneumatic pressure | 6 bars |
| Consumption of compressed air | 38 liters / cycle |
| DIMENSIONS COIL OF FILM | |
|---|---|
| Width | 250, 166 mm or 100 mm |
| Thickness | 23, 30, 33, or 50 microns |
| ø outside/inside | 230 / 38 mm |
| Colors | Transparent / Opaque / Printed |
WE MAKE IT VERY EASY
You can acquire any machine, strapping or wrapping thanks to our RENTING method. A great solution that adapts to the needs of your company, always having a long term vision.
Do you want to continue improving your packaging systems?
In Plasticband® we have the best range of orbital wrappers , strap and film, as well as the best technical service to protect your products.
